NEW Thick Wired Seed Pixels
Bring your displays to life with our Thick Seed Lights (Model 12VTS10200) — durable, high-performance pixel lights designed for professional shows and serious hobbyists. Each strand features 200 individually addressable RGB LEDs powered by Epistar chips, delivering brilliant colors with smooth 8-bit (256-level) gradients. With a 360° beam angle and precise 10cm spacing, your light effects look vivid from every direction.
Built for indoor and outdoor use, these lights are fully waterproof (IP67), UV-resistant, and encased in tough PVC with copper wiring. Whether you’re running them in extreme cold or summer heat, their 20,000+ hour lifespan ensures long-lasting performance. Plus, with Xconnect or Ray Wu 13.5mm connector options, installation is fast and reliable.
Perfect for holiday displays, stage setups, or permanent installations, the TSL-RGB seed lights offer professional-grade quality with user-friendly flexibility.

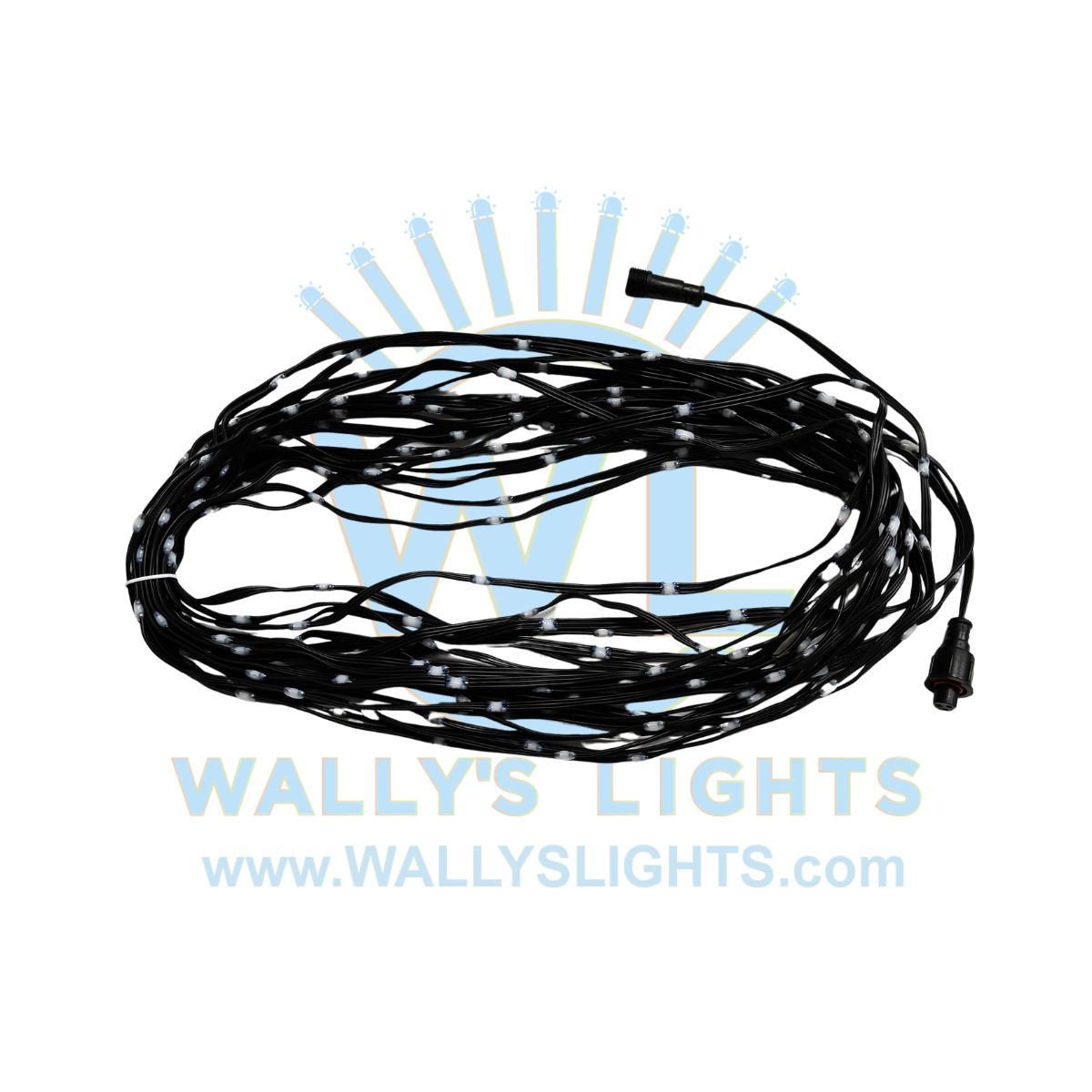

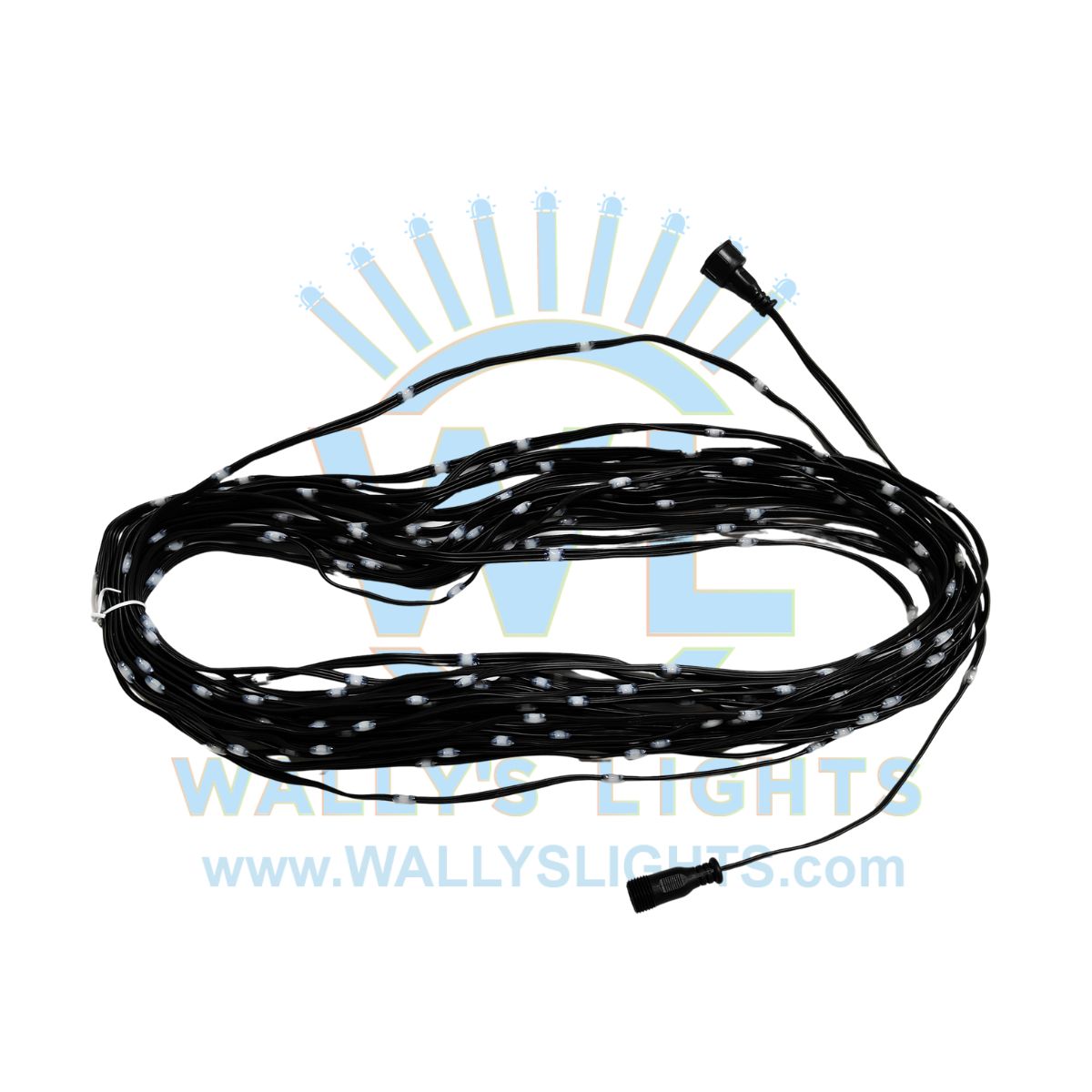

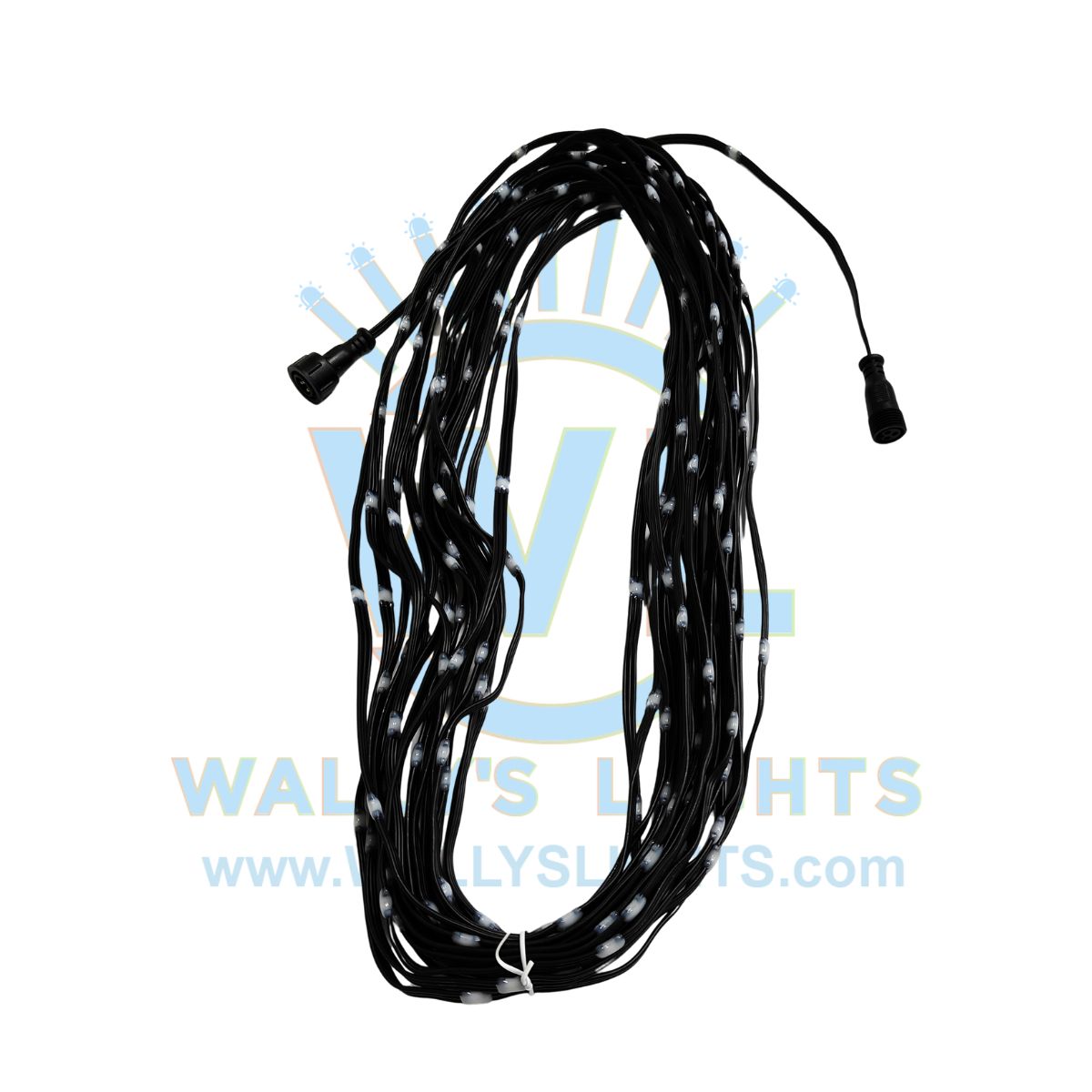

200 Ct Strand
Key Features
-
200 RGB LEDs per strand – vibrant, individually addressable pixels
-
20m length (≈65.6ft) with 10cm pixel spacing
-
Epistar LEDs rated for 20,000+ hours of use
-
Full 360° beam angle for uniform illumination
-
WS2811 compatible chip with 8-bit (256 levels) grayscale
-
Durable PVC & copper build with UV resistance
-
Waterproof IP67 rating for outdoor and indoor use
-
Connector options: Xconnect or Ray Wu 13.5mm
| Category | Details |
|---|---|
| Model | 12VTS10200 |
| Rated Voltage | DC12V |
| Max Power | 21.8W per 200ct strand |
| Max Current (single strand) | 1.8A per 200ct strand |
| Wire Specification | 3-wire, 10×0.16mm copper |
| LED Brand | Epistar |
| LED Quantity | 200 LEDs per strand (1 LED per light) |
| Lifespan | ≥ 20,000 hours |
| Control Chip | MW1856MA (WS2811 compatible) |
| Gray Scale | 8-bit (256 levels) |
| Wavelengths | Red: 615–630nm / Green: 525–545nm / Blue: 460–480nm |
| Color Order | RGB |
| Beam Angle | 360° |
| Individually Addressable | Yes |
| Lights per Strand | 200ct |
| Strand Length | 20m (≈65.6ft) |
| Pixel Spacing | 10cm center-to-center (8.9cm between lights) |
| Operating Temperature | -20°C to +60°C |
| Storage Temperature | -40°C to +75°C |
| Body Material | PVC / Copper |
| Wire Color | Black |
| UV Resistant | Yes |
| Waterproof Rating | IP67 |
| Weight per Strand | 0.42kg |
| Max Lights Before Power Injection | 200ct |
| Pigtail Options | Xconnect / Ray Wu 13.5mm |
| Warranty | 3 Months |
